D77 Player Installation Guide

Note: Successful deployment relies on adherence to the steps provided below to ensure long-term operational stability.

Pre-Installation

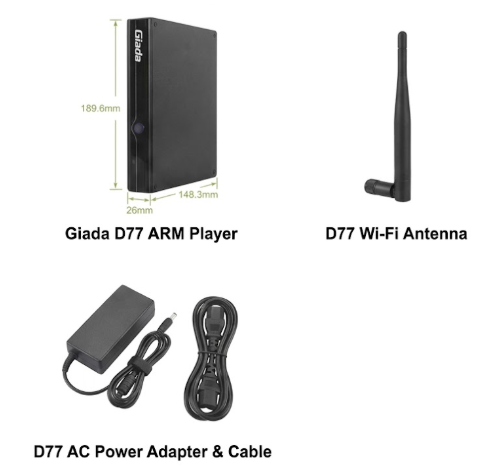

The following items are included with your D77 media player:

• Media Player: D77 Media Player
• Power: AC power adapter and AC power cable
• Display: HDMI cable
• Ethernet/WiFi: Cat5/6 (Ethernet) cable/wireless antenna

Setup also requires the following hardware and environmental conditions:

• HDTV Compatibility:  A high-definition television with at least one available HDMI input.
• Resolution:  The display resolution must be configured to 720p/1080p/4K.
• Connectivity: A broadband Internet connection via a wired (Ethernet) or wireless (WiFi) network.
• Power:  A standard power outlet located near the display.
• Initial Tools:  A wired USB keyboard is required for initial system configuration and password entry.

Installation & Setup

Notes:

• To ensure stability and signal strength, your player should be installed in an accessible, well-ventilated location.

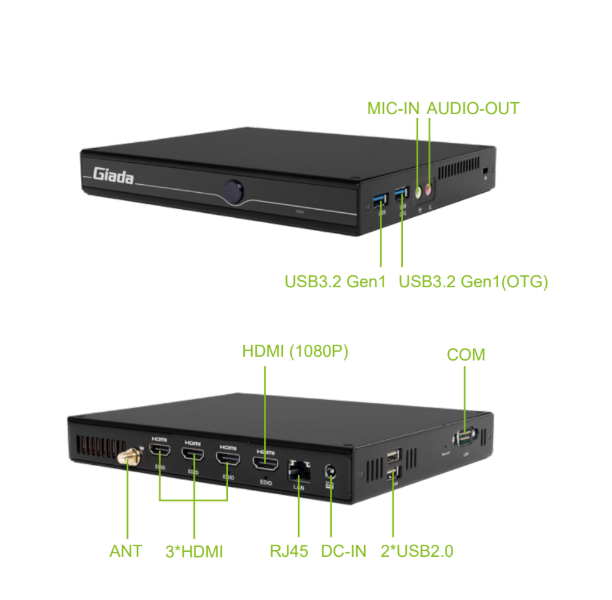

• During installation, it's recommended to have a paperclip available as there is an EDID button that sometimes needs to be held down during boot for the selected HDMI ports to work properly.

To install your player:

1. Use mounting brackets to secure the player to the top, bottom, or side of your display.
   • Alternatively, you can place the player on a stable, flat surface next to the display.
2. Connect the provided HDMI cable from the player to an available HDMI port on the television.
3. Note which specific HDMI input (HDMI 1, HDMI 2, etc.) is used.
   • This can be used to verify the television source matches this input.

To configure your player with the local network:

1. Connect the wired USB keyboard to navigate the player menu.
2. Navigate to Settings, then Network.
3. Toggle on WiFi by pressing the Select button on the provided remote.
4. Select the desired SSID.
5. Use the keyboard to enter the network password.

Notes:

• Never connect your player to a guest WiFi network.
• If using a wired connection, connect an Ethernet cable from your network switch or router to the player. The device should detect the connection and configure itself automatically.

If the local network requires a static IP address, navigate to  Settings  >  Network  >  IP Settings > Static and provide the following information:

• IP Address
• Subnet Mask
• Default Gateway
• DNS 1
• DNS 2

Home Screen and Registration

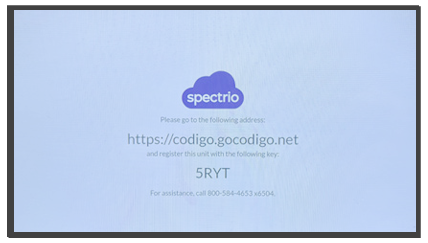

Once Internet connection is established, the player will load the Home Screen and generate a four-character registration code.

To activate the player, email the four-character code, Company Name, and Hub ID to [e-mail]. This code is valid only until 5:00 PM local time on the day it’s generated.

If the code expires, you must disconnect, then reconnect the power to the device to trigger a reboot and generate a new code.

Troubleshooting

Use the following Symptom-Cause-Solution chart for common hardware diagnostics.

Symptom	Possible Reason	Resolution
Black Screen	Incorrect Input Source	Verify the TV is set to the specific HDMI input noted during installation.
Outdated Content	Incorrect Time/Date	Navigate to Settings > Advanced > Device Preferences > Date & Time.  Ensure Automatic Date & Time is On and Use Network Provided Time is selected.
Frozen Display	System Lockup	Perform a hard reset by unplugging the device for 30 seconds, then reconnecting.
Network Offline	5 GHz/Guest Band	Ensure the player isn’t on a guest network.

Note: Following successful activation, your player requires at least 30 minutes to fully download and boot the content library.

Replacement Parts and Support

For post-installation hardware support or to request replacement components (remote, power adapters, player, etc.), contact Spectrio Support.

• Email:  [e-mail]
• Phone:  [phone] Ext. 2

All support requests must include the Company Name, Hub ID, and a validated shipping address.

For questions or concerns, please reach out to our Support Team at [e-mail].
